Bar tong adjustable for lifting round bars Bar tong adjustable up to 1 ton capacity Adjustable diameter tong for lifting round bars, cast or pipes Quick Ship ships in 10 days

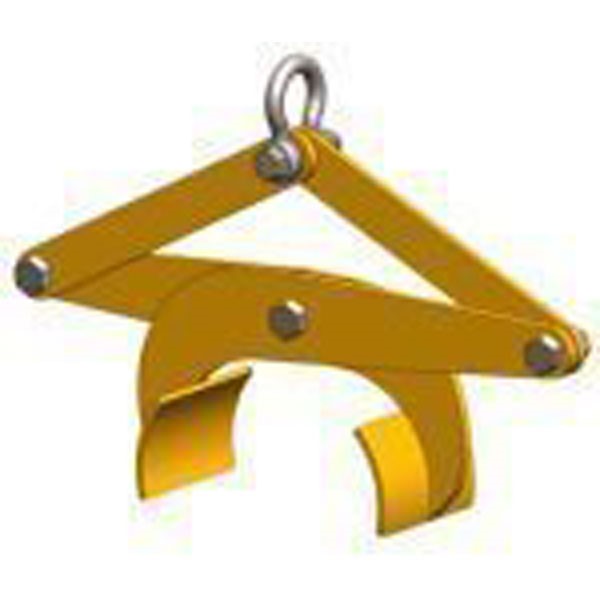

Bar Tong Adjustable - 1 ton - BTA-1-712

Manufacturer: Peerless Industrial Group
Be the first to review this product
This adjustable diameter tong is ideal for lifting round bars, cast or steel pipe of various diameters.
SKU: PL-BTA-1-712
Manufacturer part number: PL-BTA-1-712
The price must be from $0.00 to $20,000.00
i h
Ships in: Made to Order QuickShip within 10 Days

Peerless - Bar Tong Adjustable - BTA-1-712

Lifting Capacity from 1/2 Ton up to 1 Ton!

Benifits:

  • This style of adjustable diameter tong is ideal for lifting round bars, cast or steel pipe of various diameters.
  • Can be supplied with optional replaceable urethane pads for additional load protection.
  • The load must be balanced during the lift.
  • Can be used in pairs attached to a lifting/spreader beam to handle longer loads.
  • Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
  • 100% of ALL Peerless Tongs are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.

Options:

  • Replaceable urethane pads
  • Higher capacities available
Products specifications
Capacity (tons) From/To1/4 Ton (to) 5 Tons
Capacity1600
Bare Range Min/Max7/12
Urethane Pad Range Min/Max6.25/11.25
Headroom Min/Max34/38
Pad Width6
Bail Height0.75
Bail Opening Width2
Bail Opening Height2
Weight (Lbs)55
