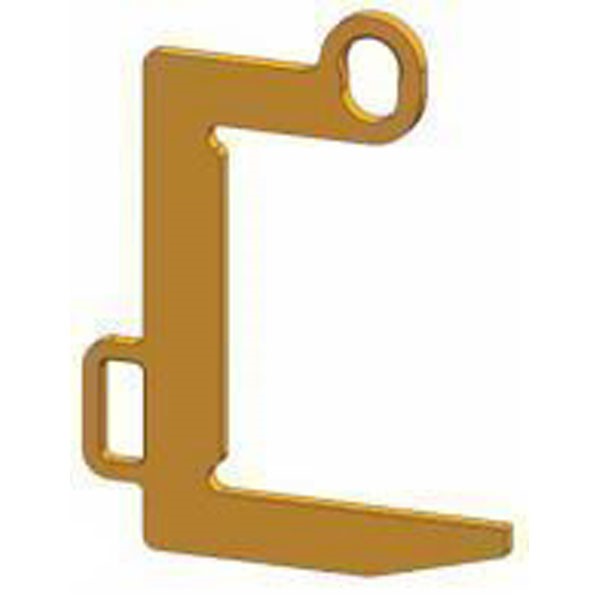

Coil Lifter Narrow Coil - 2 Ton - CLNC-2-8

Manufacturer: Peerless Industrial Group
Be the first to review this product
Coil lifter is designed to easily lift and position narrow coils by placing the lifting arm securely through the I.D. of the coil.
SKU: PL-CLNC-2-8
Manufacturer part number: PL-CLNC-2-8
The price must be from $0.00 to $20,000.00
i h
Ships in: Made to Order QuickShip within 10 Days

Peerless Coil Lifter Narrow Coil - CLNC - 2-8

Benifits

  • This style of lifter is designed to easily lift and position narrow coils by placing the lifting arm securely through the I.D. of the coil.
  • Supplied with standard lifter guide handle and radius on lifting arm to minimize coil damage.
  • Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
  • 100% of ALL Peerless Coil Lifters are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.

Options

  • Higher capacity
  • Additional lengths
  • Larger throat opening
  • Protective padding
  • Coil retainer cap
  • Parking stands

*List Price includes standard guide handle.

Products specifications
Capacity (tons) From/To1/4 Ton (to) 5 Tons
Capacity (tons)2
Coil Width Max8
Headroom24.5
Lift Arm Lenght8
Lift Arm Height2.25
Throat Opening Height19.5
Bail Height1
Bail Opening Width2.63
Bail Opening Height4
Bail Thickness0.75
Weight (Lbs)27
