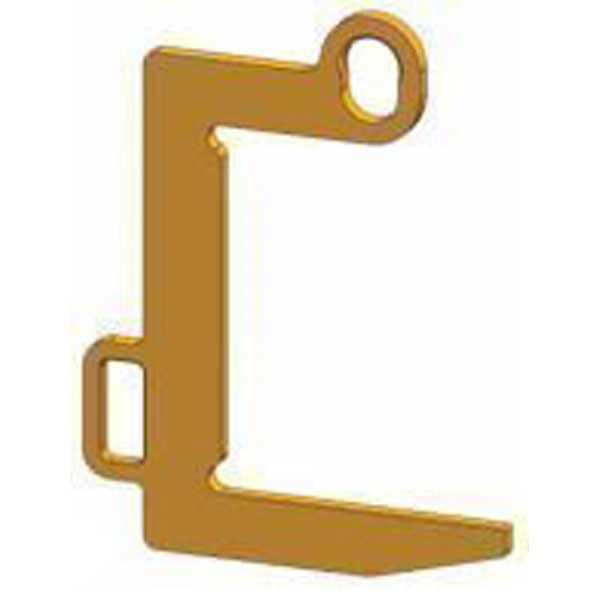

Coil Lifter Narrow Coil - 3.5 Ton - CLNC-3.5-16

Coil lifter is designed to easily lift and position narrow coils by placing the lifting arm securely through the I.D. of the coil.
SKU: PL-CLNC-3.5-16
Manufacturer part number: PL-CLNC-3.5-16
The price must be from $0.00 to $20,000.00
i h
Ships in: Made to Order QuickShip within 10 Days

Peerless Coil Lifter Narrow Coil - CLNC -3.5-16

Benifits

  • This style of lifter is designed to easily lift and position narrow coils by placing the lifting arm securely through the I.D. of the coil.
  • Supplied with standard lifter guide handle and radius on lifting arm to minimize coil damage.
  • Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
  • 100% of ALL Peerless Coil Lifters are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.

Options

  • Higher capacity
  • Additional lengths
  • Larger throat opening
  • Protective padding
  • Coil retainer cap
  • Parking stands

*List Price includes standard guide handle.

Products specifications
Capacity (tons) From/To1/4 Ton (to) 5 Tons
Capacity (tons)3.5
Coil Width Max16
Headroom28.2
Lift Arm Lenght16
Lift Arm Height3.25
Throat Opening Height21.5
Bail Height1.19
Bail Opening Width3.63
Bail Opening Height5.5
Bail Thickness1
Weight (Lbs)69
