Coil Lifter Narrow Coil - 3.5 Ton - CLNC-5-20

Manufacturer: Peerless Industrial Group
Be the first to review this product
Coil lifter is designed to easily lift and position narrow coils by placing the lifting arm securely through the I.D. of the coil.
SKU: PL-CLNC-5-20
Manufacturer part number: PL-CLNC-5-20
The price must be from $0.00 to $20,000.00
i h
Ships in: Made to Order QuickShip within 10 Days

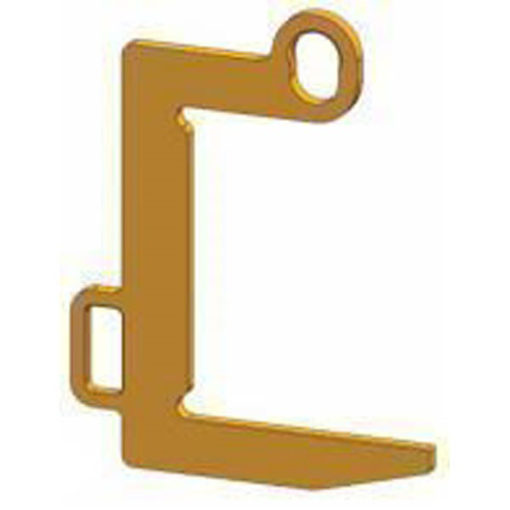

Peerless Coil Lifter Narrow Coil - CLNC -5-20

Benifits

  • This style of lifter is designed to easily lift and position narrow coils by placing the lifting arm securely through the I.D. of the coil.
  • Supplied with standard lifter guide handle and radius on lifting arm to minimize coil damage.
  • Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
  • 100% of ALL Peerless Coil Lifters are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.

Options

  • Higher capacity
  • Additional lengths
  • Larger throat opening
  • Protective padding
  • Coil retainer cap
  • Parking stands

*List Price includes standard guide handle.

Products specifications
Capacity (tons) From/To1/4 Ton (to) 5 Tons
Capacity (tons)5
Coil Width Max20
Headroom33
Lift Arm Lenght20
Lift Arm Height4.5
Throat Opening Height25.5
Bail Height1.5
Bail Opening Width4
Bail Opening Height6
Bail Thickness1.25
Weight (Lbs)121
