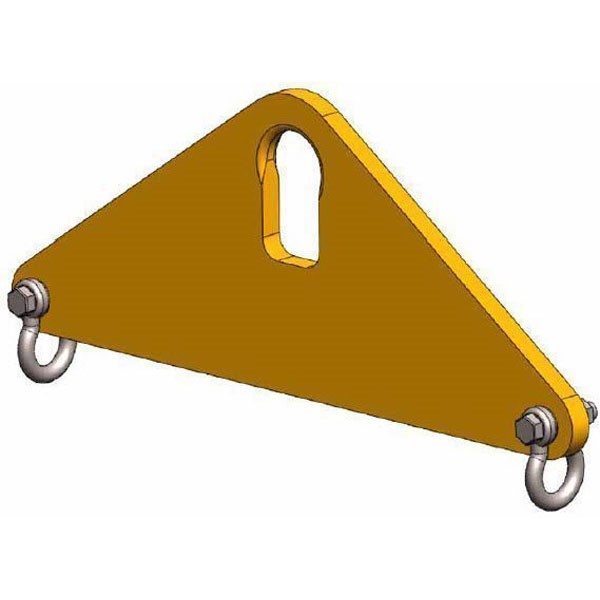

Short span lifting beam up to 195 Ton Capacity Short span lifting beam optional design with upper shackle SSLB-25-2 Short span lifting beam diagram

Short Span Lifting Beam (Plate Style) - 1Ton - 1 ft. Outside Spread - SSLB-.1-1

Manufacturer: Peerless Industrial Group
Be the first to review this product
This lifting beam is ideal for short span applications and can be used where headroom is limited.
SKU: PL-SSLB-1-1
Manufacturer part number: SSLB-1-1
The price must be from $0.00 to $20,000.00
i h
Ships in: Made to Order QuickShip within 10 Days

Peerless - Short Span Lifting Beam (Plate Style) - # SSLB-1-1

Lifting Capacity 1Ton with a  1 ft. Outside Spread

Benifits:

  • This lifting beam is ideal for short span applications and can be utilized where headroom is limited.
  • Supplied with a pair of shackles and one standard spread.
  • Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
  • 100% of ALL Peerless Lifting Beams are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.

Options:

  • Additional lift points
  • Higher capacities (supplied w/upper shackle)
  • Additional lengths
  • Upper shackle
  • Upper shackle w/oblong link
  • Hooks
Products specifications
Capacity (tons) From/To1/4 Ton (to) 5 Tons
Capacity (tons)1
Outside Spread (ft.)1
Headroom9.6
Bail Height0.88
Bail Opening Width3
Bail Opening Height5
Bail Thickness0.75
Shackle Size5/8
Shackle Clearance1.6
Weight (Lbs)20
