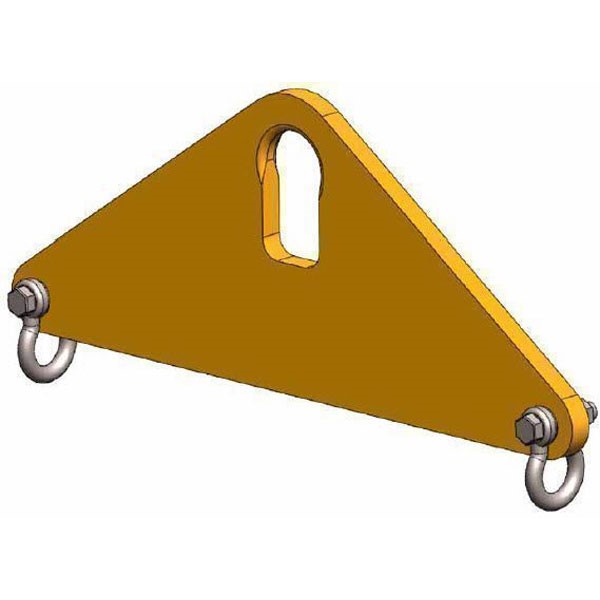

Short Span Lifting Beam (Plate Style) - 170 Ton - 3 ft. Outside Spread - SSLB-170-3

Manufacturer: Peerless Industrial Group
Be the first to review this product
This lifting beam is ideal for short span applications and can be used where headroom is limited.
SKU: PL-SSLB-170-3
Manufacturer part number: SSLB-170-3
The price must be from $0.00 to $20,000.00
i h
Ships in: Made to Order QuickShip within 10 Days

Peerless - Short Span Lifting Beam (Plate Style) - # SSLB-170-3

Lifting Capacity 170 Ton with a 3 ft. Outside Spread

Benifits:

  • This lifting beam is ideal for short span applications and can be utilized where headroom is limited.
  • Supplied with a pair of shackles and one standard spread.
  • Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
  • 100% of ALL Peerless Lifting Beams are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.

Options:

  • Additional lift points
  • Higher capacities (supplied w/upper shackle)
  • Additional lengths
  • Upper shackle
  • Upper shackle w/oblong link
  • Hooks
Products specifications
Capacity (tons) From/To150 (to) 200 Tons
Capacity (tons)170
Outside Spread (ft.)3
Headroom47.2
Bail Height6.50
Bail Opening Width10
Bail Opening Height24
Bail Thickness4.00
Shackle Size3
Shackle Clearance8.2
Weight (Lbs)1450
