Spreader Beam, Standard Duty - SDSB-5-20

Manufacturer: Peerless Industrial Group
Be the first to review this product
Utilized with upper rigging spread between two lift points that adds extra stability to the lift.

5 Ton Capacity with a 20 ft. Spread

SKU: PL-SDSB-5-20
Manufacturer part number: PL-SDSB-5-20
The price must be from $0.00 to $20,000.00
i h
Ships in: Made to Order QuickShip within 10 Days

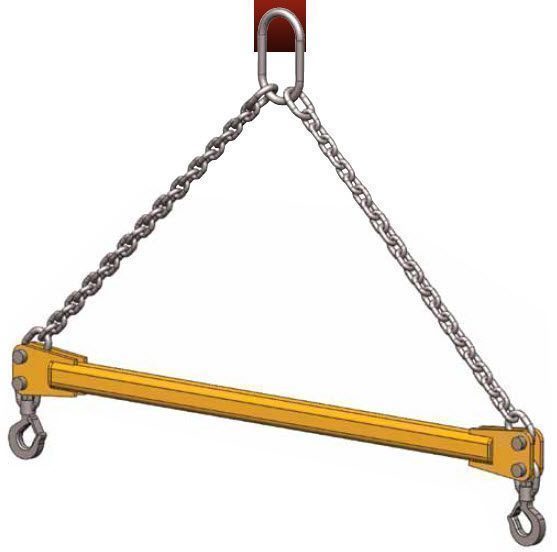

Peerless Industrial Spreader Beam - Standard Duty - SDSB-5-20

Benifits

  • This style of lifter is utilized with upper rigging spread between two lift points that adds extra stability to the lift.
  • This spreader beam should be utilized where headroom is not limited and comes standard with a pair of swivel hooks.
  • Can be supplied with optional chain or wire rope top rigging.
  • Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
  • 100% of ALL Peerless Spreader Beams are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.

Options

  • Higher capacities
  • Additional lengths
  • Chain top rigging
  • Wire rope top rigging

*Includes two swivel hooks with pins.
Beam Only does not include swivel hooks and pins.

Products specifications
Capacity (tons) From/To1/4 Ton (to) 5 Tons
Capacity (tons)5
Outside Spread (ft.)20
Headroom141
Oblong ML Diameter1
Oblong ML Opening Width3.5
Oblong ML Opening Height7
Hook Opening1.36
Weight (Lbs)435
